| Window frame thickness | 60mm, 70mm, 80mm, 108mm, 120mm |

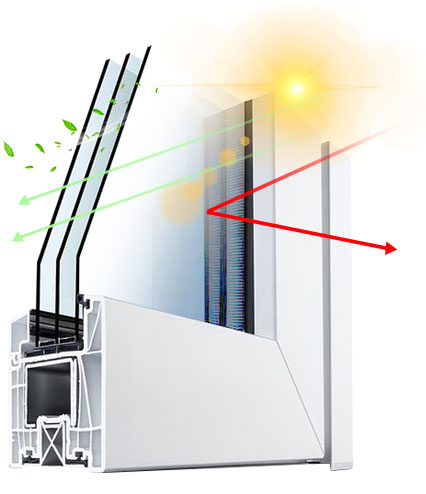

| Glass | Double-layer insulating glass 5mm + 12A(15A, 20A, 22A) + 5mm; Triple-layer insulating glass 5mm + 9A + 5mm + 9A + 5mm; Laminated options: (5mm + 0.76PVB+ 5mm) + 12A + 5mm. Low-E coatings and Argon gas available. |
| Gauze Element | Diamond mesh screen window, 304 stainless steel |

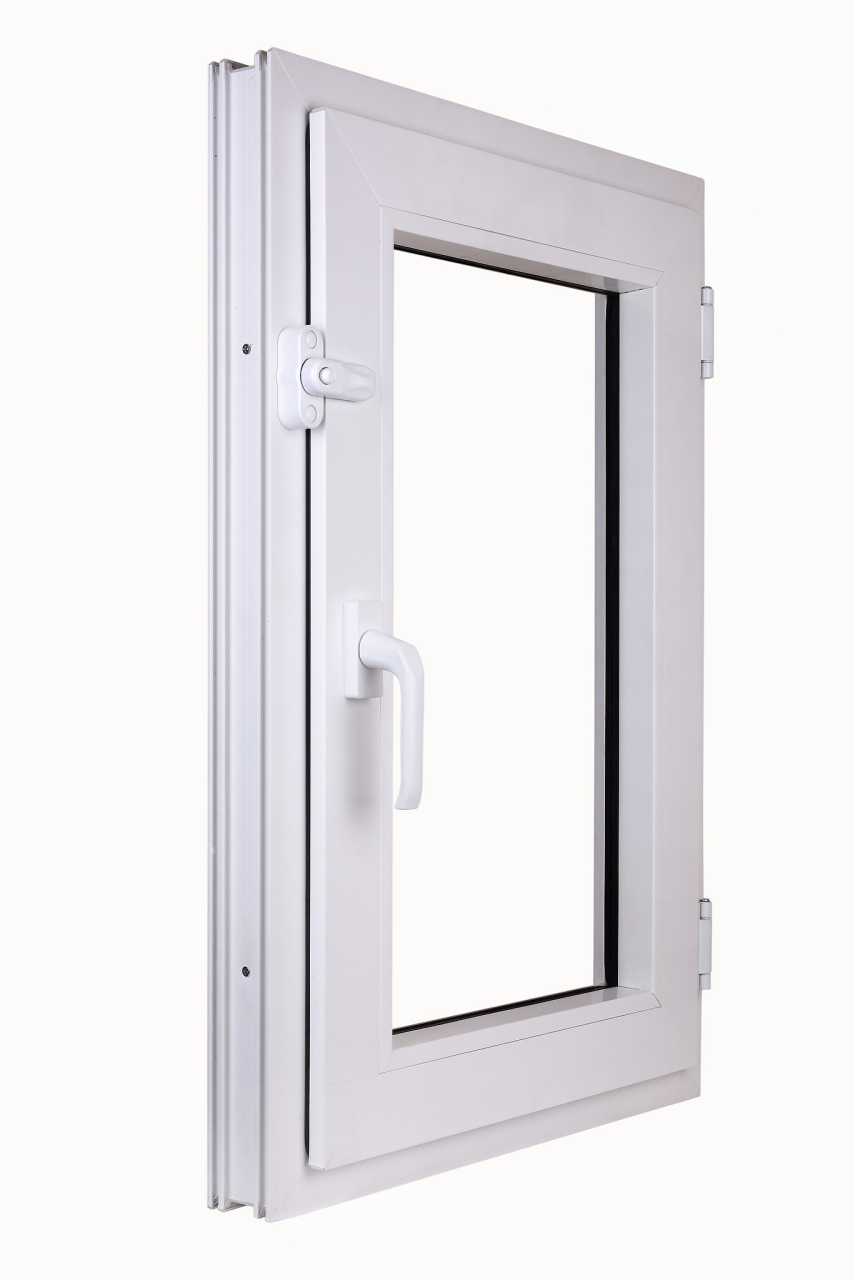

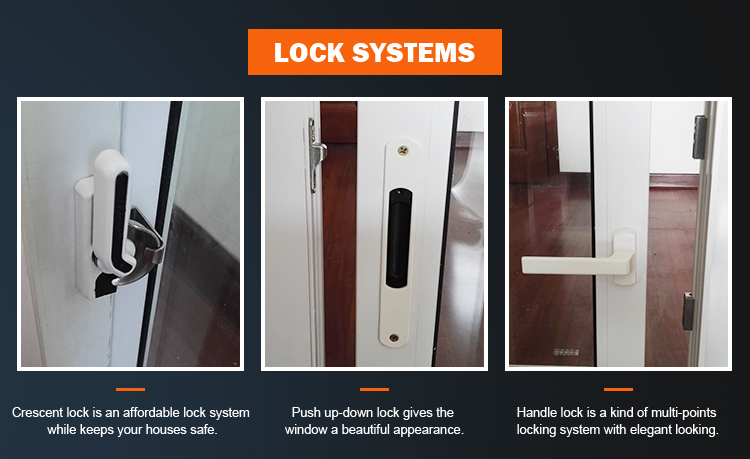

| Hardware | Germany Origin Made Brand SIEGENIA / ROTO / HOPPE Hardware & Accessories. |
| Open the fan | One fan, two fans, three fans, four fans |
| MOQ | Customized sizes less than 1.5 square meters will be charged based on 1.5 square meters. |
The measured width (W) and height (H) of the opening are not the dimensions directly ordered. Adjustments must be made for the installation gap:
Installation Gap: Space for foam adhesive and leveling. Conventional value is 10mm-20mm per side, depending on wall flatness and profile requirements.
Example: For a 1498mm x 1598mm opening with a 15mm required gap per side, the order size would be 1468mm x 1568mm.
