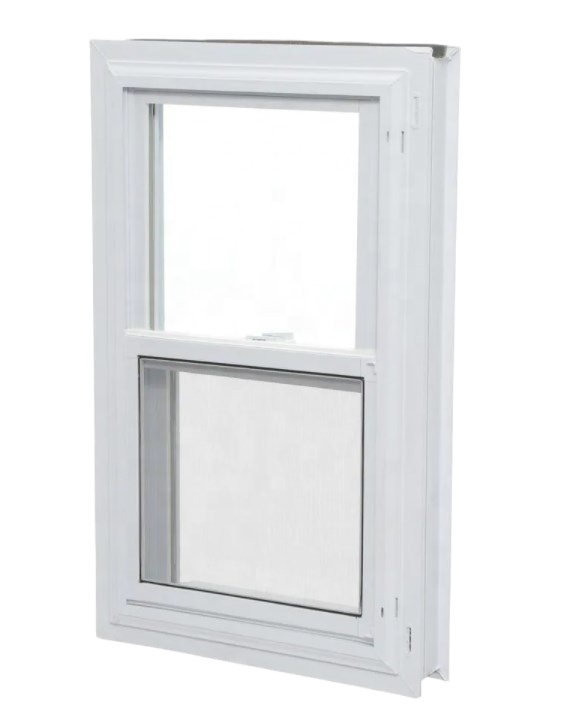

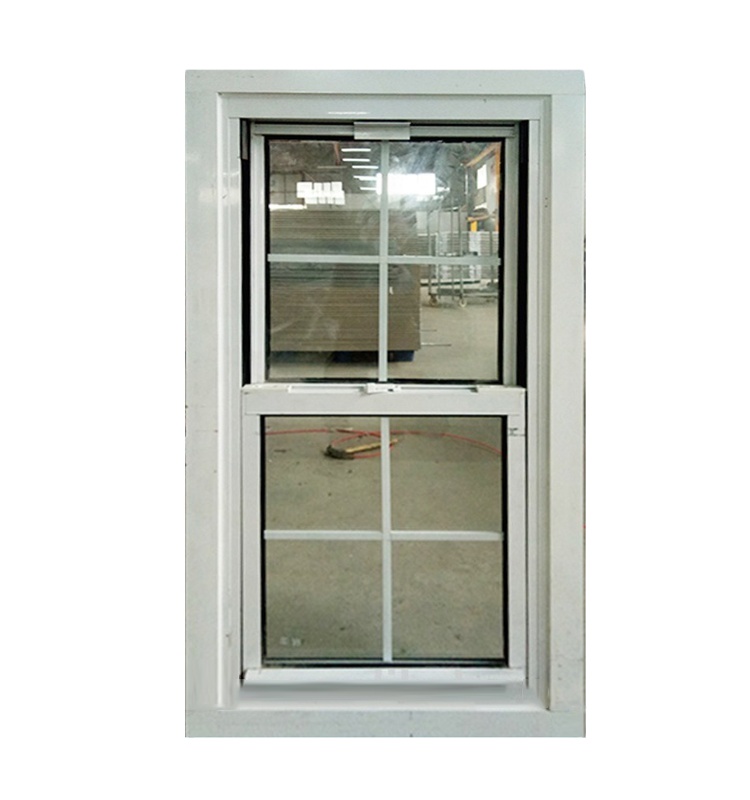

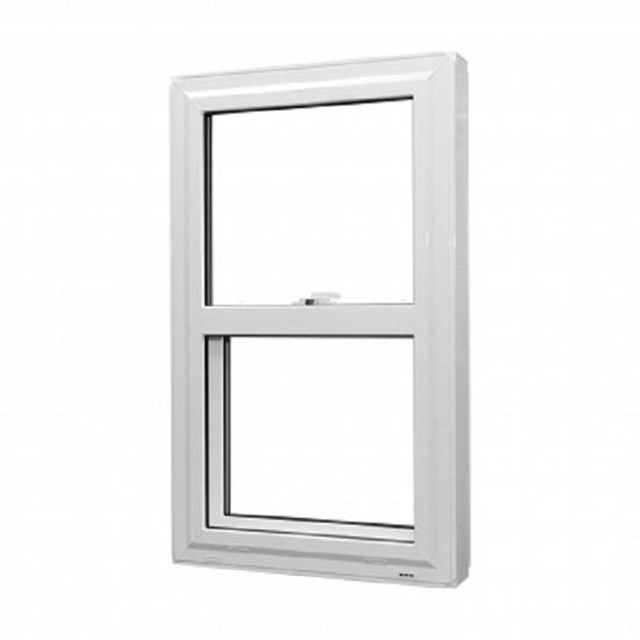

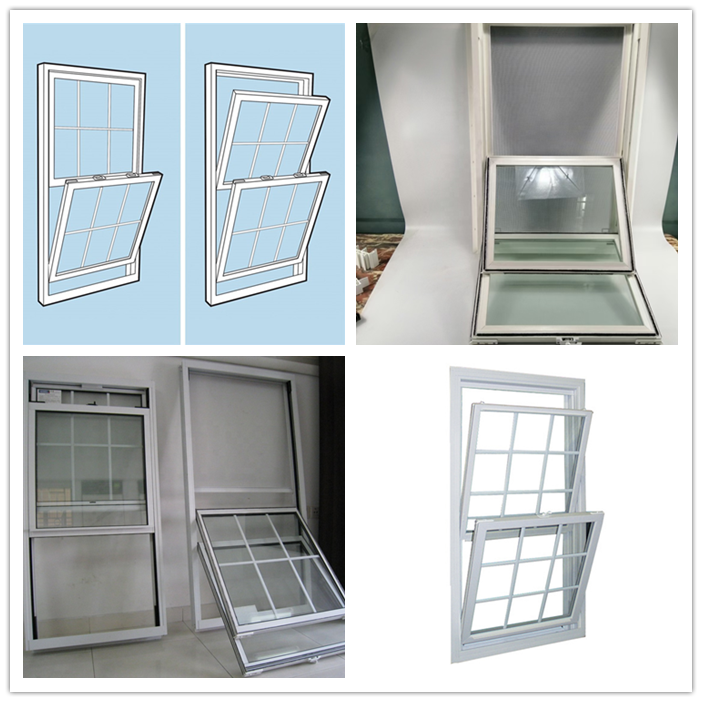

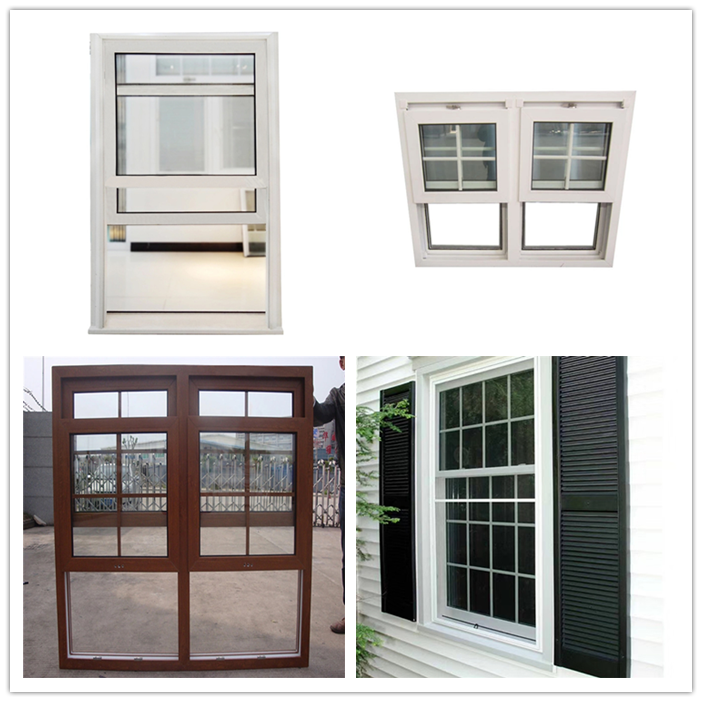

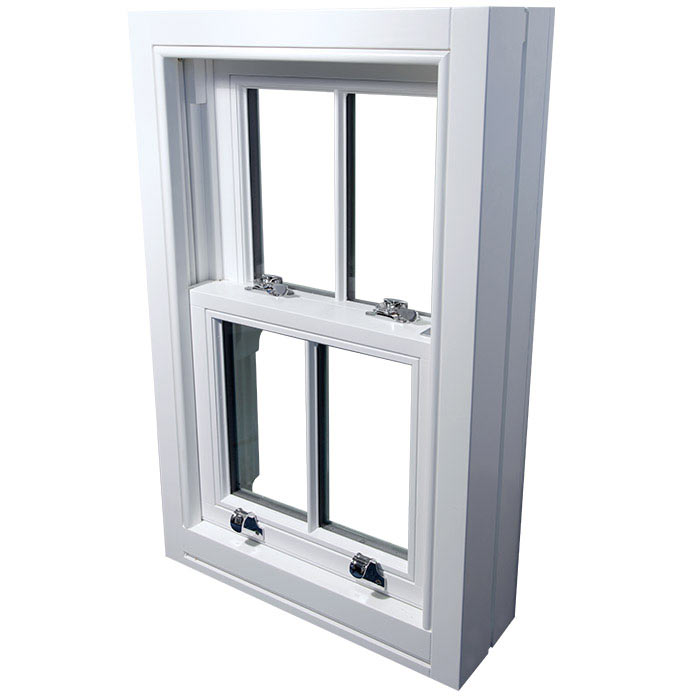

UPVC Hung Window can be used for different kinds of environment, heat insulated that can give good performance of heat insulation, efficient resistance of wind, rain and noise.

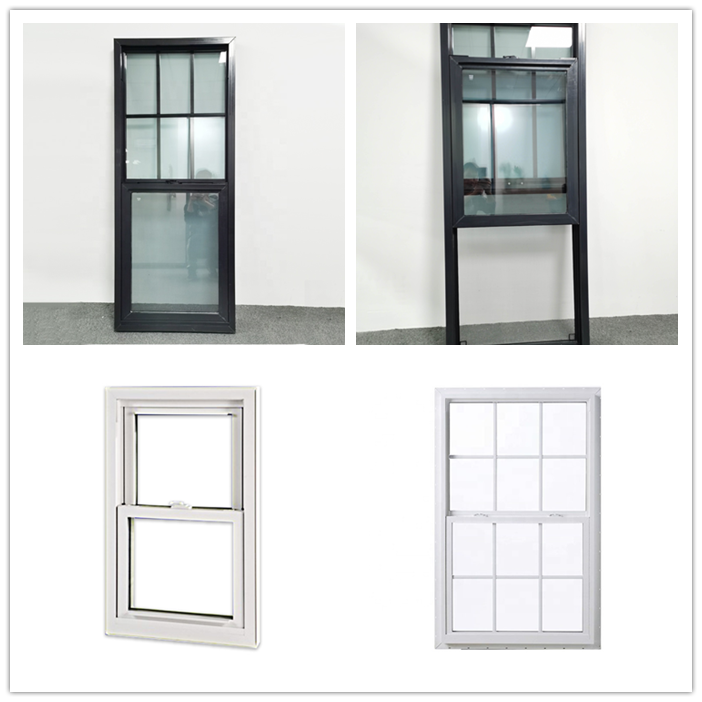

| Product Name | UPVC/PVC/Vinyl Hung Window | |
| Profile | Heat Insulation | Customized |
| Profile Thickness | 0.8mm/1.0mm/1.2mm/1.4mm/1.8mm/2.0mm | Customized |
| Steel Liner Thickness | 1.0mm/1.2mm | Customized |
| Surface Treatment | Powder Coated\Anodizing\Electrophoresis\Wood Grain Transfer etc | Customized |
| Glass Types | Single/Double Tempered Glass/Laminated Glass/Low-E Glass/Double Glazed | Customized |
| Hardware | China Top Brand/Germany Brand/HOPO/ROTO/Coach Etc | Customized |
| Screen | Stainless Steel/Nylon/FiberGlass/Plastic/King Kong | Customized |
| Rubber Strip | European Standard EPDM | Customized |
| Color Option | Customized Color /Color Choices/Silvery Grey/Mat Black/White Popular ETC | Customized |
| Application | Courtyard/Laundry/Kitchen/Exterior/Staircase/Gym etc | Customized |
| Packaging | Plastic Film\EPE Cloth\Wood Case\Steel Stillage\Fumigation Plywood Box | Customized |
| Standards | CE/AS2047/AS2048/NFRC/AAMA/ISO9001/ISO14001 Approved | |

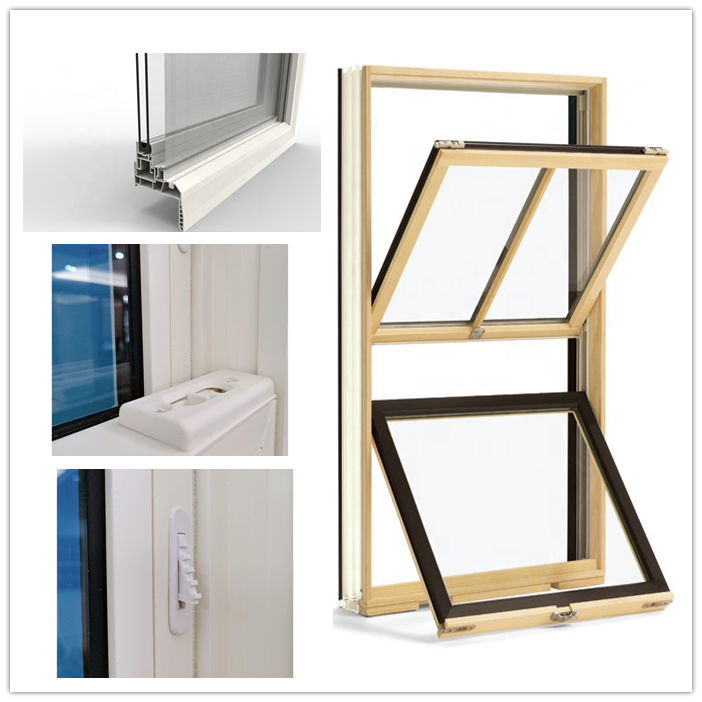

| Profiles | 1. Heat insulation profiles 2. UPVC/PVC/Vinyl hung window: 46/50/60/65/70/80mm, thickness: 1.8/2.0/2.2/2.5/2.8mm |
| Glass | 1. Double tempered glass: 5+12A+5, 6+12A+6... 2. Single tempered glass: 6, 8, 10, 12... 3. Laminated glass: 6.38, 10.76, 10.38... 4. Low-e glass, frosted/obscure glass, tinted glass... |
| Color | White, Monochrome co-extrusion, double color co-extrusion, one side coating, double coated, customized |

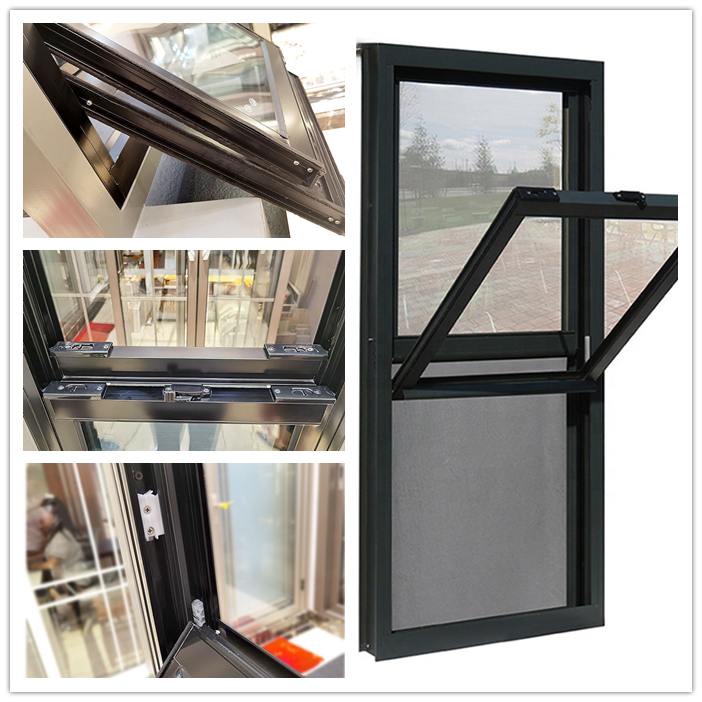

| Hardware | Crescent lock + controller + roller pulley |
| Mesh | Stainless steel security mesh, Aluminium security mesh, Nylon flynet, FiberGlass flynet, Kingkongnet, Plastic net |
| Profile Series | Details | |
|---|---|---|
| Series | 46/50/60/65/70/80mm | Max glass thickness: 3-32mm |
| Finish | Extrusion, Co-extrusion, Coated, All-body profiles | |
| Colors | Brown, Dark grey, Light grey, Black, Star black, etc. | |

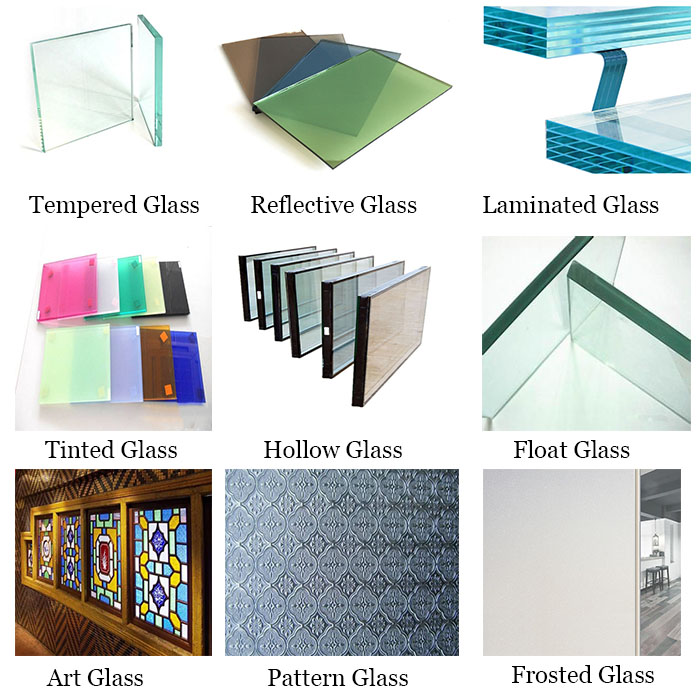

| Glass Types | Film / Gray / Black / Blue / Green / Double Tempered / Laminated / Safety Glass |
| Thickness | 3mm to 12.76mm; Double Glazing: 5+6A+5, 5+9A+5, 5+12A+5, 6+12A+6 etc. |
| K/U (Insulation) | < 1.1 | Glass thickness | 3-30mm |
| Airtightness | ≤ 0.5 m3/(m2.h) | Profile Width | 50-135mm |
| Watertightness | ≥ 700 Pa | Transmittance | 60%-98% |
| Wind Pressure | ≥ 5.0 KPa | Fire-proof Level | AAAAA |

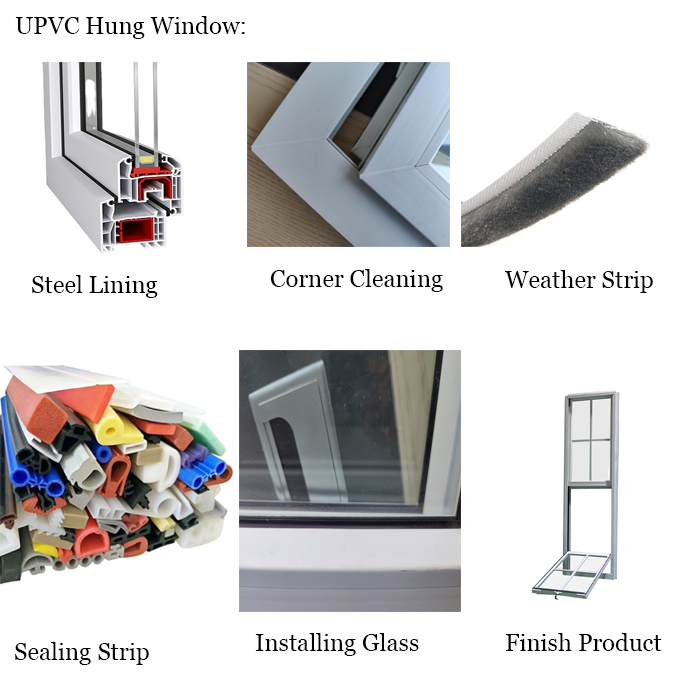

Procedure: Cutting profiles → Assemble frame → Install hardware → Install EPDM sealing strip → Install glass → Glue → Finish frame assembly
